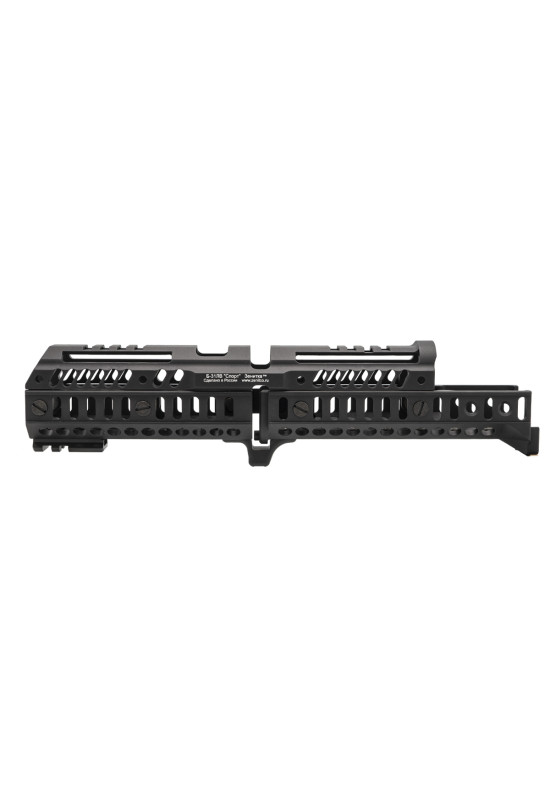

The Sport-4S kit is a modernized modular handguard system for installation on AK and AK-based rifles with a long barrel (415 mm).

It features Basis rails on three sides for mounting additional accessories directly onto the handguard, including:

• Side Picatinny rails: B-2 (45 mm), B-2U (75 mm), B-2L (34 mm), B-2M (15 mm)
• A-1L and A-2L slingmounts
• RL-1 hand stoppers
• Grips: RK-0L, RK-1L, RK-2L, RK-4L, RK-6L
• NPN-2 Basis rail covers
• FP-3 wire holders
• Tactical switches from the "D" line

Compatible weapon models:

• AKM, AKMS, AK-74, AK-74M, AK-101, AK-103
• Saiga MK 223 Rem, Saiga MK 7.62 isp.30, Saiga MK 5.45 isp.30
• TG-2, Saiga 308 Win v.61
• Vepr-K (VPO-133), Vepr-KM (VPO-136), VPO-209, AK-366-Lancaster

Note: The "Sport-4S" kit is incompatible with AK models and civil rifles with a short barrel length (314–350 mm). For these models, use the "Sport-1" kit.

All elements of the kit are CNC-machined and available in black or desert color coating.

Specifications:

Material: D16T aluminum alloy

Weight: 336 ± 10 g

Product length: 295 mm

Operating ambient temperature range: -50 to +50°C

Warranty period of storage and operation: 60 months

Advantages during operation:

• Rigidity and strength
• Improved barrel cooling from receiver to gas tube
• Mounting options for multiple tactical devices
• Lightweight and compact configuration

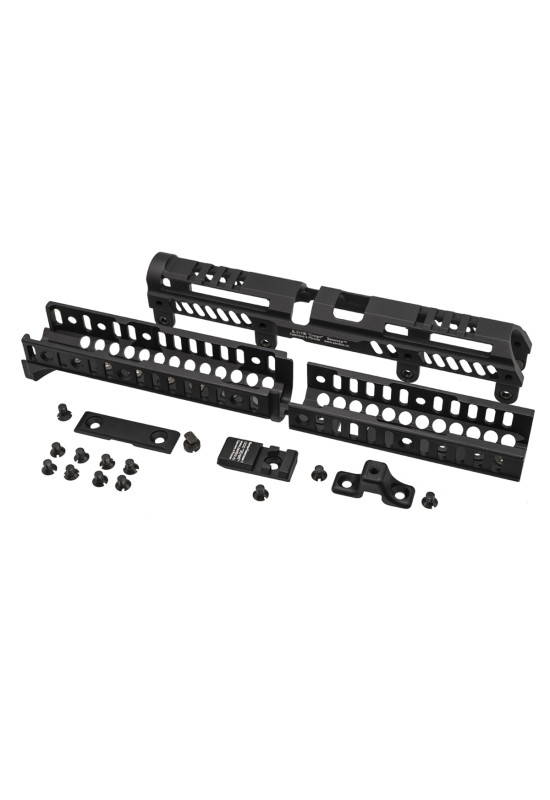

In the kit:

To install the "Sport-4S" kit on the weapon:

1. Ensure the weapon is safe and perform partial disassembly. Remove the standard handguard and upper cover.
2. Install the B-10LS handguard:
   • Position it where the original lower handguard was.
   • Secure using a hammer and spacer. Do not file the part or strike directly.
3. Install the B-31LV upper handguard in place of the gas tube cover.
4. Attach the DL-2S additional rail using the included screws.
5. To enhance rigidity, connect B-10LS and DL-2S using the "Sport-4S" side bar and M5x9 screw.
6. Install the Leader hand stopper underneath to link B-10LS and DL-2S.
7. Mount the Picatinny fork and cam clamp following the provided manuals. Use a spacer and hammer if needed.

For more details about installation and usage, refer to the included manuals for each component.

Note: The overall rigidity of the handguard affects both optic stability and shooting accuracy.

The manufacturer reserves the right to change the product design or configuration without prior notice if such changes do not negatively affect its performance or consumer characteristics and are intended to improve functionality or production efficiency.
