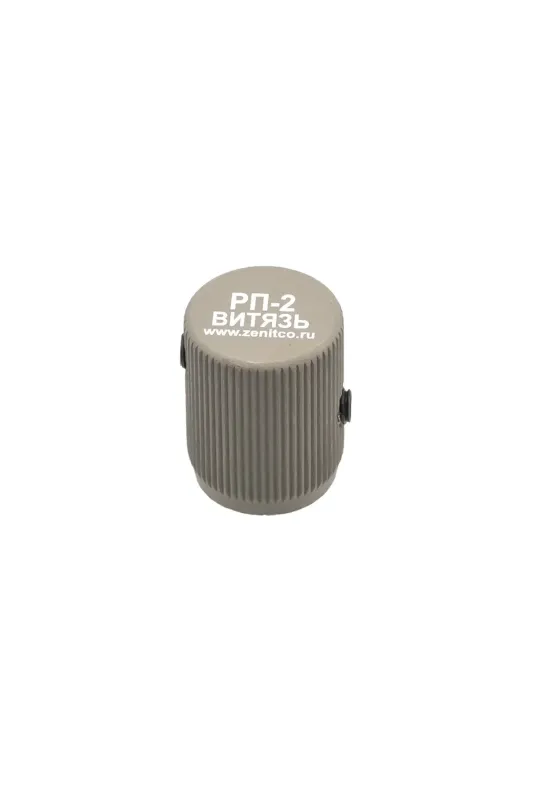

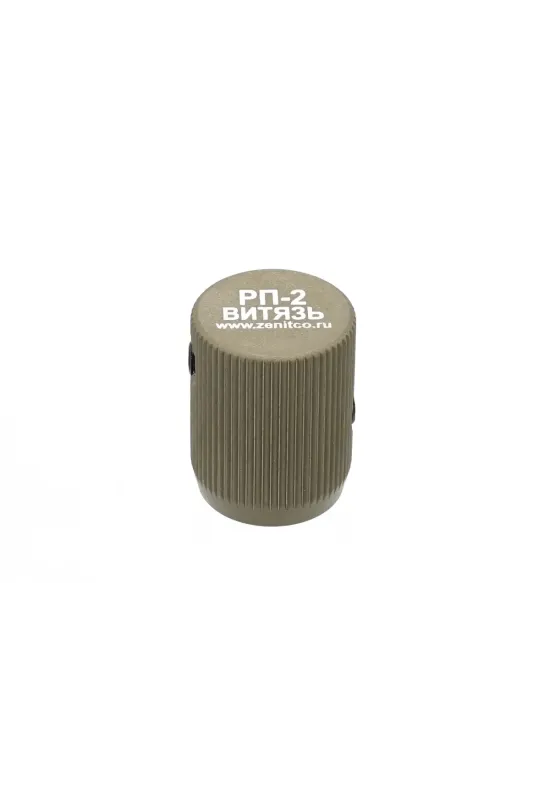

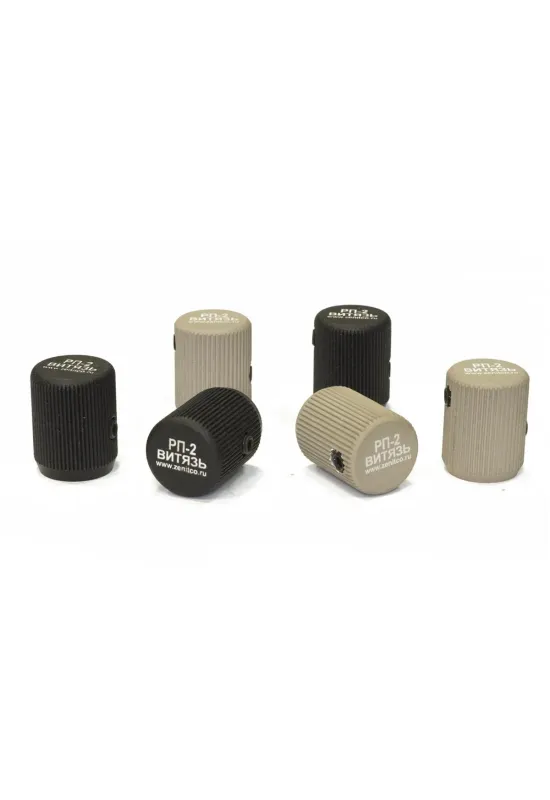

The RP-2 charging handle is a milled product made of D16T alloy, coated in black or desert color.

Compatibility: PP Vityaz

Installing the RP-2 charging handle allows you to extend the standard bolt handle, making weapon reloading more convenient.

The RP-2 is mounted on the standard bolt handle using the screws included in the kit.

Specifications:

Weight: 17 ± 2 g

Overall dimensions: (18x27) ± 3 mm

Operating temperature range: -50 °С to +50 °С

Warranty period of storage and operation: 60 months

In the Kit:

Installation Instructions:

1. Use the hex key included in the RP-2 kit to unscrew the mounting screws. Remove the internal part (the part with internal threading) from the outer casing.
2. Carefully separate the two halves of the internal part and place them on the standard bolt handle so that the threaded hole (located in the middle of the internal part's body) faces the muzzle end of the weapon. Then, place the outer casing on top of this assembly, ensuring that the mounting holes on the outer casing align with the threaded holes on the internal part.
3. Insert and tighten the central mounting screw (located at the center of the handle), then insert and tighten the second mounting screw (located on the rear side of the handle, farthest from the weapon's axis).

The manufacturer reserves the right to make changes to the product design or configuration without prior notice, provided these changes do not worsen the technical characteristics, consumer properties, or product quality and align with the aim of improving its design or production technology.
