PT-3 telescopic stock | Zenitco
$695.00
- Ex Tax: $695.00
- Brand: Zenitco
- Product Code: ZNTC-PT-3
- Availability: 1
PT-3 Milled Telescopic Tubular Stock with a rubber butt pad and adjustable cheek pad is designed for AK series models: AK-103, AK-104, AK-105, AK-74M, AK-74S, AKS-74U, Vityaz SN.
PT-3 telescopic stock is installed in place of the standard side-folding stock on AK models.
It features a length adjustment mechanism (range: 5 cm) and an adjustable cheek.
Operational Benefits:
- No modification is required for installation
- Adjustable cheek
- Wide range of length adjustments (5 cm)
- Folding mechanism allows fixation along the receiver, maintaining any length and cheek height adjustments
- Iron sight can be used when the cheek is in the lower position
Specifications:
Material: D16T alloy coated in black
Weight: 550 ± 10 g
Overall dimensions: (210/260 x 110/140 x 43) ± 5 mm
Operating temperature range: from -50 °С to +50 °С
Warranty period: 60 months

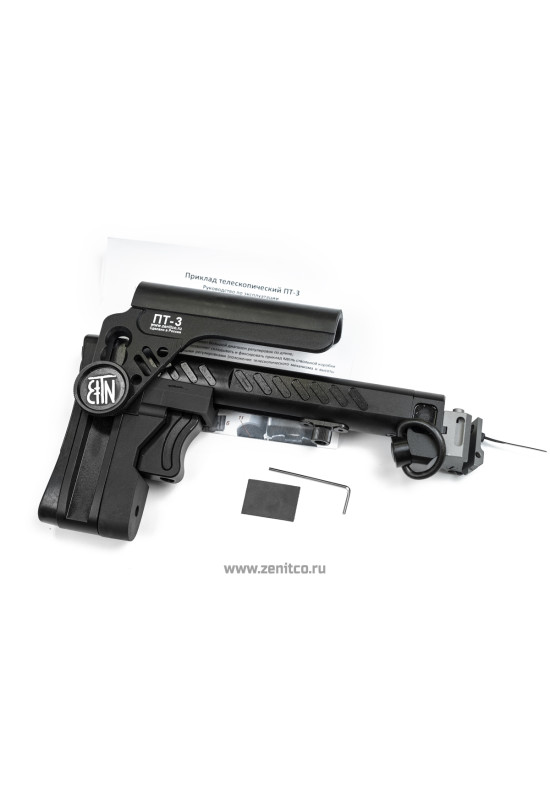

In the Kit:
| "PT-3" Stock | 1 pc. |
| Hex key | 1 pc. |
| Little piece of rubber | 1 pc. |
| Instruction manual | 1 pc. |
Installation Instructions:
- Install PT-3 in place of the standard AK stock.
- Remove the existing stock by opening the dust cover, removing the pistol grip, and using a hammer and drift punch to remove the hinge.

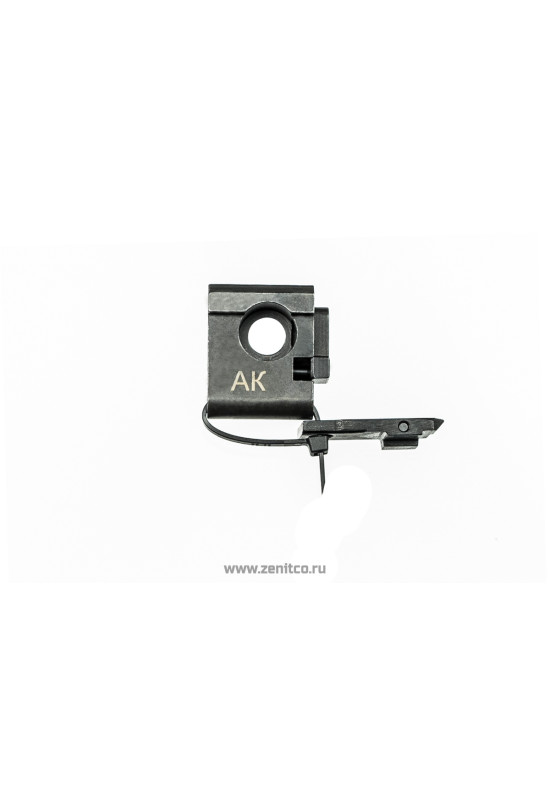

- Position PT-3 and the lock plate in the receiver, secure the hinge, and tighten the lock bar screw.
- If needed, apply a small piece of rubber to prevent wobble in the standard folding button area.
- Use the standard folding button to fold the stock and the adapter button to unfold it.
- To adjust length, unscrew the tube screw, press the adjustment button, and secure if wobble elimination is required.
- To adjust cheek height, loosen the cheek screw, set the desired height, and tighten manually.
Note: Moving parts of the telescopic stock mechanism should be cleaned during maintenance.
More detailed illustrated instructions are in the instruction manual.
The manufacturer reserves the right to make changes to the product design or configuration without prior notice, provided these changes do not worsen the technical characteristics or consumer properties of the product and align with the aim of improving its design or production technology.
