The all-milled telescopic stock of the skeletal type "PT-3S" with a rubber back and rubber cheek pad is designed for installation and operation on "Saiga 9" carbines.

The telescopic stock "PT-3S" is installed on the regular place of "Saiga 9" stocks folding in the side.

It has a length adjustment mechanism and a cheek adjustable in height, allowing adjustments based on tasks and the individual physique of the shooter.

Operational Benefits:

• No modification of the weapon is required during installation.
• Adjustable cheek and adjustable back for customization.
• Telescopic mechanism with a wide range of length adjustments.
• Original mechanism allows folding and fixing along the receiver, with any established adjustments (position of telescopic mechanism and cheek height).
• No need to remove the "B-13" rail above the receiver when folding.
• In the lower cheek position, allows use of mechanical sight.

Material:

D16T alloy coated in black color.

Weight:

585 ± 10g (in the kit assembly: wide rubber cover for back of the stock and two sling mounts).

Overall Dimensions:

(220/270х110/155x43) ± 5 mm.

Operating Temperature Range:

-50°C to +50°C.

Warranty Period:

60 months.

In the Kit:

Installation Instructions:

1. PT-3S is installed instead of the standard stock of AK and carbines based on AK.
2. Knock the axis out of the loop of the standard folding mechanism and remove the standard stock.

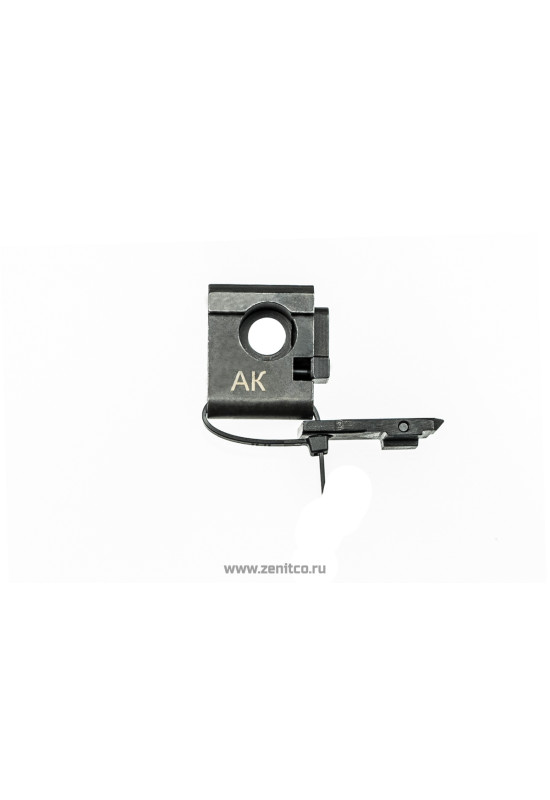

3. Install the PT-3S and the lock plate in the receiver, drive in the axis, and tighten the lock bar by screwing in the screw.
4. To fold PT-3S to the left, use the standard button of the folding mechanism. In the folded position, lock with the button.
5. To unfold, press the lock button and extend the stock. Fix in the unfolded position using the standard folding mechanism lock.
6. To adjust the length, unscrew the backlash screw completely, press the adjustment key, pull to the desired length, release the key, and tighten the screw by hand.
7. To adjust the cheek height, loosen the screw, select the desired height, and tighten the screw by hand.

Note: Moving parts of the telescopic stock length adjustment mechanism must be cleaned during weapon maintenance.

More detailed illustrated instructions are in the instruction manual.
