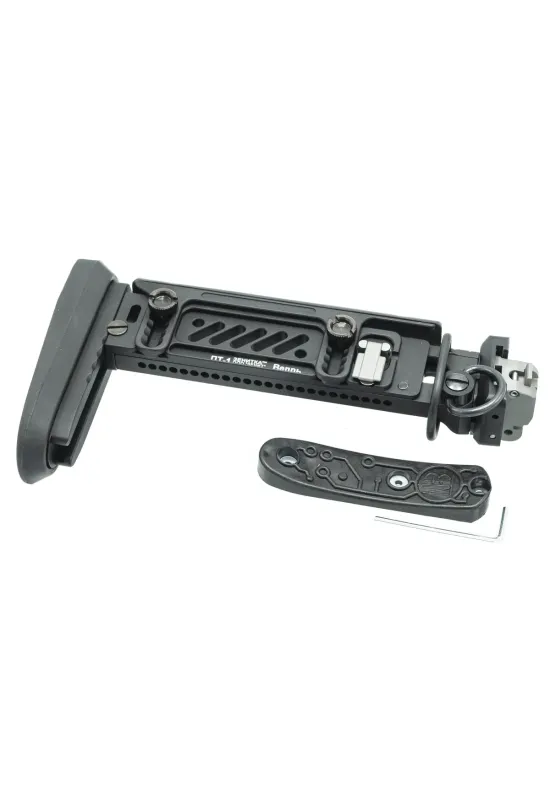

PT-1 Vepr Milled Telescopic Folding Stock is designed for platforms based on the RPK (Vepr), featuring a mechanism that blocks firing when the stock is folded.

Note: If your platform has a plate that prevents folding the stock with an unlocked safety lever, use the PT-1 Vepr stock. If you do not have this plate, use the PT-1 RPK stock.

PT-1 Vepr allows for adjustments tailored to operational goals and the user’s anatomy.

Advantages during Operation:

• No modification is required for installation
• Adjustable cheek and adjustable butt pad
• Wide range of length adjustments
• Folding mechanism allows fixation at any stock length, cheek height, and butt pad height
• Iron sight can be used in the lower cheek position
• Two butt pad options: wide and narrow
• Two slingmount options included

Specifications:

Material: D16T alloy

Weight: 523 ± 5 g (in kit with wide rubber cover and two slingmounts)

Overall dimensions: (222/332 x 110/142 x 42) mm

Operating temperature range: from -50 °С to +50 °С

Warranty period: 60 months

In the Kit:

Installation Instructions:

1. Remove the standard stock:
• Take off the rear grip to avoid interference with the hinge.
• Open the dust cover.
• Using a hammer and drift pin, remove the hinge from the folding mechanism, following standard disassembly instructions.
2. Select the desired slingmount and remove the other one.
3. Select the preferred butt pad cover and replace if needed.
4. Install PT-1 Vepr in the designated position and secure the hinge.

Stock Adjustments:

1. To adjust length, raise the lever, press the button, set the desired length, and lower the lever to secure.
2. To adjust cheek height:
• Loosen screws, set cheek to the desired height, and tighten screws to lock.
3. To adjust butt pad height:
• Loosen the screw, set the pad height, and tighten to secure.
4. To fold the stock, press the standard folding button. To unfold, press the unfolding button.

Note: Moving parts of the telescopic stock mechanism should be cleaned during maintenance.

More detailed illustrated instructions are in the operation manual.

The manufacturer reserves the right to make changes to the product design or configuration without prior notice, provided these changes do not worsen the technical characteristics or consumer properties of the product and align with the aim of improving its design or production technology.
