PT-1 Milled Telescopic Skeleton-Type Stock with a rubber butt pad and rubber cheek is designed for installation and use on various models in the AK series: AK-103, АК-104, АК-105, АК-74М, АК-74S, AKS-74U, AKM, Vityaz-SN, TG2, Saiga-MK v.30, АК-366-Lancaster, Vepr-K, Vepr-KM, VPO-209.

The PT-1 telescopic stock is installed in place of the standard side-folding stock for AK models.

PT-1 allows for adjustments based on operational tasks and the individual physique of the user.

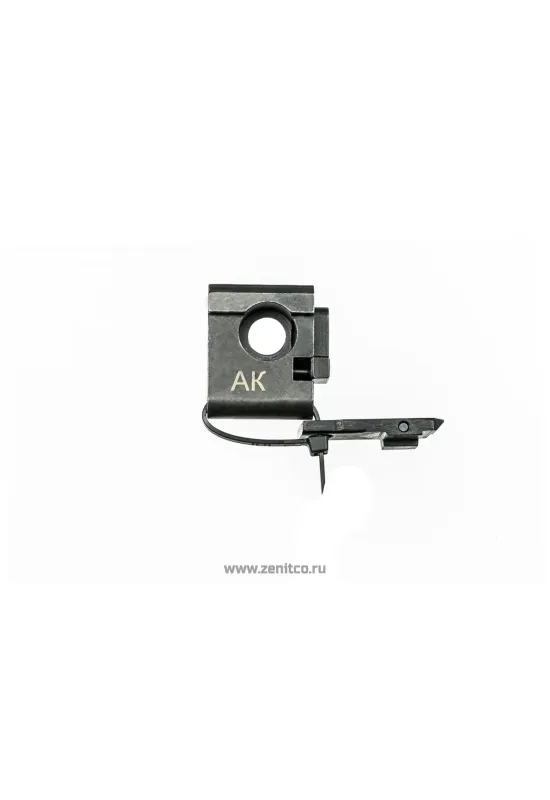

One of the Following Adapters is Selected Depending on the Model:

• Adapter for AKS, AKS-74U (stock axis diameter - 4.5 mm)
• Adapter for AK models with combat functionality and firing capability with folded stock (axis diameter - 5.5 mm)
• Non-folding adapter for AKM and similar carbine models

Adapters are included in the stock delivery set. When purchasing, please specify the model so that the appropriate adapter is provided.

Advantages during Operation:

• No modification is required for installation
• Adjustable cheek and adjustable butt pad
• Wide range of length adjustments
• Folding mechanism allows fixation at any stock length, cheek height, and butt pad height
• Compatible with B-13 rail installed on the dovetail joint
• Allows use of iron sight in lower cheek position
• Two butt pad options: wide and narrow
• Two slingmount options included

Specifications:

Material: D16T alloy

Weight: 480 ± 10 g (in kit with wide rubber cover and two slingmounts)

Overall dimensions: (212/312 x 110/142 x 42)

Operating temperature range: from -50 °С to +50 °С

Warranty period: 60 months

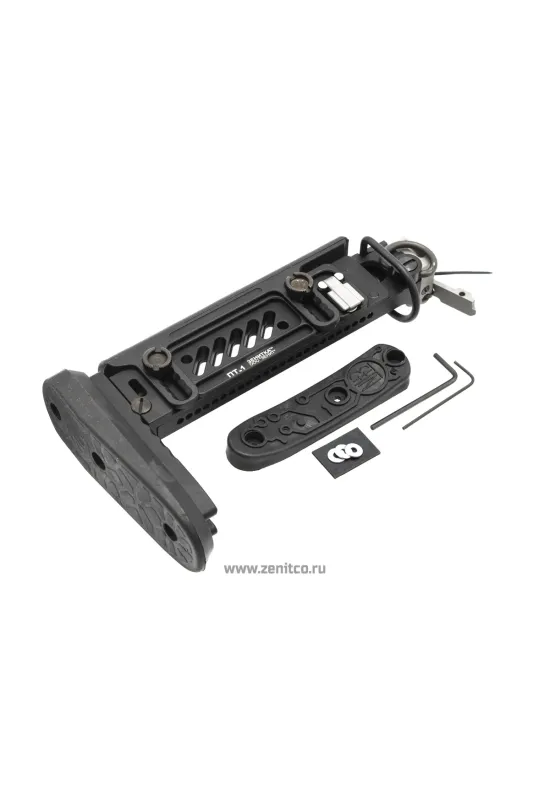

In the Kit:

Installation Instructions:

1. Remove the standard stock:
• Remove the rear grip to avoid interference with the hinge.
• Open the dust cover.
• Use a hammer and drift pin to remove the hinge from the folding mechanism, following standard disassembly instructions.
2. Select the slingmount you plan to use and remove the other one.
3. Select the preferred butt pad cover and replace if needed.
4. Install the PT-1 and adapter plate on the rifle, then secure the hinge from top to bottom.

More detailed illustrated instructions are in the operation manual.

The manufacturer reserves the right to make changes to the product design or configuration without prior notice, provided these changes do not worsen the technical characteristics or consumer properties of the product and align with the aim of improving its design or production technology.
