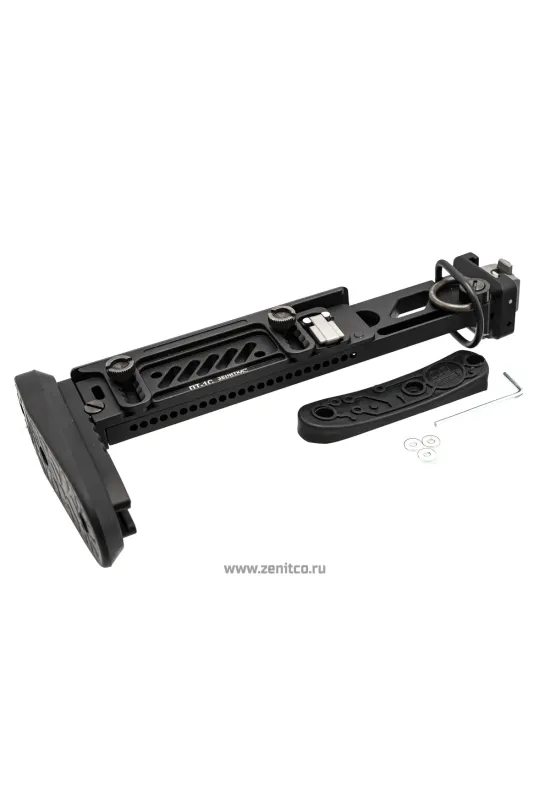

PT-1S Vepr Telescopic Stock is designed for civilian rifles based on the RPK platform (with a mechanism that blocks firing when the stock is folded). The PT-1S Vepr allows for adjustments based on the shooter’s goals and anatomical needs.

Advantages during Operation:

• Does not require weapon modification during installation
• Adjustable cheek and adjustable butt pad
• Wide range of length adjustments
• Folding mechanism allows fixation at any stock length, cheek height, and butt pad height
• Allows use of iron sight in lower cheek position
• Two butt pad options: wide and narrow
• Two slingmount options in the kit

Specifications:

Overall dimensions (min/max, mm): 274/368x110/142x42

Weight (with two slingmounts and wide butt pad): 571 ± 5 g

Material: D16T aluminium alloy

Working range of ambient temperatures (°С): from -50 to +50

Installation Instructions:

1. Remove the regular stock:
• Take off the rear grip to avoid interference when removing the hinge.
• Open the dust cover.
• Use a hammer and drift pin to remove the hinge from the folding mechanism, following standard disassembly instructions.
2. Choose the desired slingmount and remove the other one.
3. Choose the desired butt pad cover and replace if needed.
4. Install the PT-1S Vepr stock on the standard mount and secure the hinge.

Stock Adjustments:

1. To adjust the stock length, raise the lever, press the button beneath, and pull the stock to the desired length. Lock by closing the lever.
2. To adjust cheek height:
• Loosen screws, set the cheek at the desired height, and tighten to secure.
3. To adjust butt pad height:
• Loosen the screw, set the butt pad to the desired height, and tighten to secure.
4. To fold the stock, press the folding button; to unfold, press the unfolding button.

Attention: Moving parts of the telescopic stock mechanism should be cleaned during rifle maintenance.

Warranty period: 60 months.

The manufacturer reserves the right to make changes to the product design or configuration without prior notice, provided these changes do not worsen the technical characteristics or consumer properties and align with the aim of improving design or production technology.
