PT-1S telescopic stock | Zenitco

0 reviews / Write a review

$695.00

  • Ex Tax: $695.00
  • Brand: Zenitco
  • Product Code: ZNTC-PT-1S
  • Availability: 1

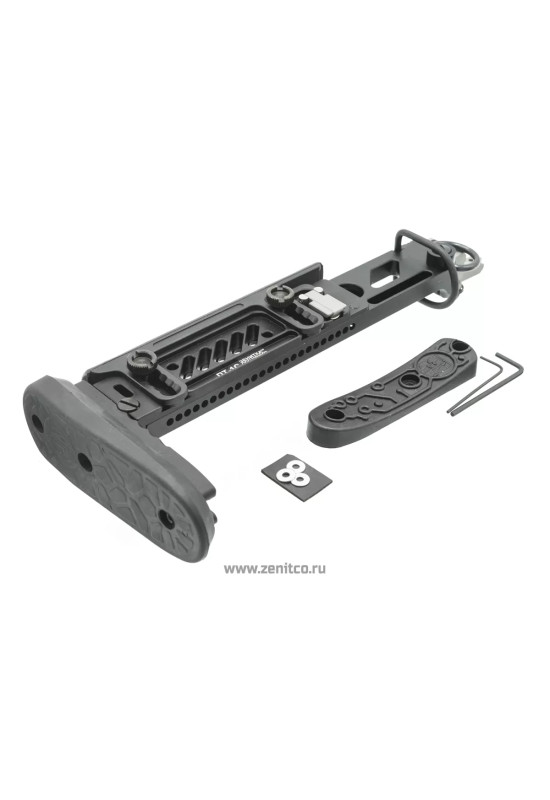

PT-1S Milled Telescopic Skeleton-Type Stock with a rubber butt pad and rubber cheek is designed for installation and operation on AK series with a barrel length of less than 415 mm.

The telescopic stock "PT-1S" is installed on the standard AK stock mount, folding to the side.

PT-1S allows adjustments based on tasks and the individual physique of the user.

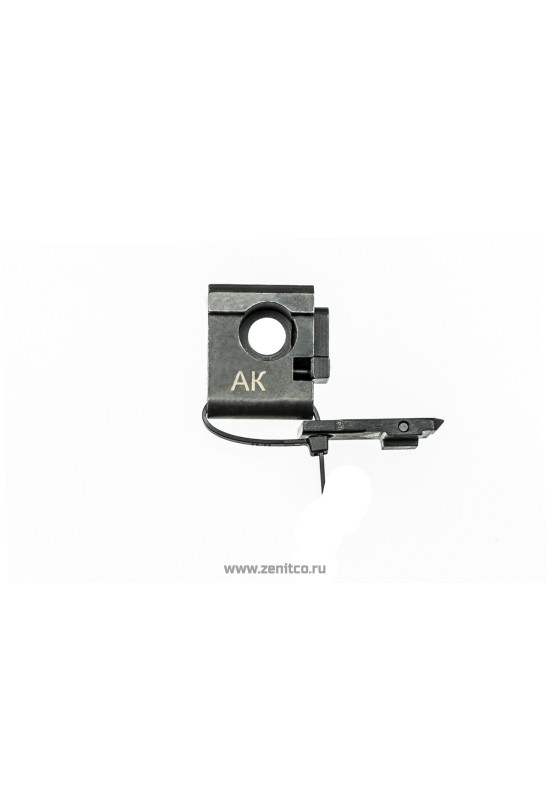

One of the following adapters is selected depending on the model:

  • Adapter for AKS, AKS-74U (stock axis diameter - 4.5 mm)
  • Adapter for AK models with combat functionality and firing capability with folded stock (axis diameter - 5.5 mm)
  • Non-folding adapter for AKM and carbine models based on it

Adapters are included in the stock delivery set. When purchasing, specify your platform model to receive the appropriate adapter.

Advantages during Operation:

  • Does not require platform modification during installation
  • Adjustable cheek and adjustable butt pad
  • Wide range of length adjustments
  • Folding mechanism allows fixation at any stock length, cheek height, and butt pad height
  • Compatible with B-13 rail installed on the dovetail joint
  • Allows use of iron sight in the lower cheek position
  • Two butt pad options: wide and narrow
  • Two slingmount options in the kit

Specifications:

Material: D16T alloy

Weight: 515 ± 10 g (in kit with wide rubber cover for back of stock and two slingmounts)

Overall dimensions: (242/342x125/142x42)

Operating temperature range: from -50 °С to +50 °С

Warranty period: 60 months

In the Kit:

Stock "PT-1S" 1 pc.
Stock adapter 1 pc.
Hex key 3 pcs.
Washers for butt pad cover 3 pcs.
Rubber spacer 1 pc.
Rubber butt pad cover (wide and narrow) 2 pcs.
Operation manual 1 pc.

Installation Instructions:

  1. Remove the regular stock:
    • Remove the rear grip to avoid interference with the hinge.
    • Open the dust cover.
    • Using a hammer and drift pin, remove the hinge from the folding mechanism, striking from the bottom to top towards the dust cover according to standard disassembly instructions.
  2. Select the slingmount to use and remove the other.
  3. Choose a butt pad cover as needed. Replace the current one if required.
  4. Install the PT-1S and adapter plate on the rifle, then insert and secure the hinge by tapping from top to bottom.

Note: Moving parts of the telescopic adjustment mechanism should be cleaned during weapon maintenance.

More detailed illustrated instructions are in the operation manual.

The manufacturer reserves the right to make changes to the product design or configuration without prior notice, provided these changes do not worsen the technical characteristics or consumer properties of the product and align with improvement goals.
