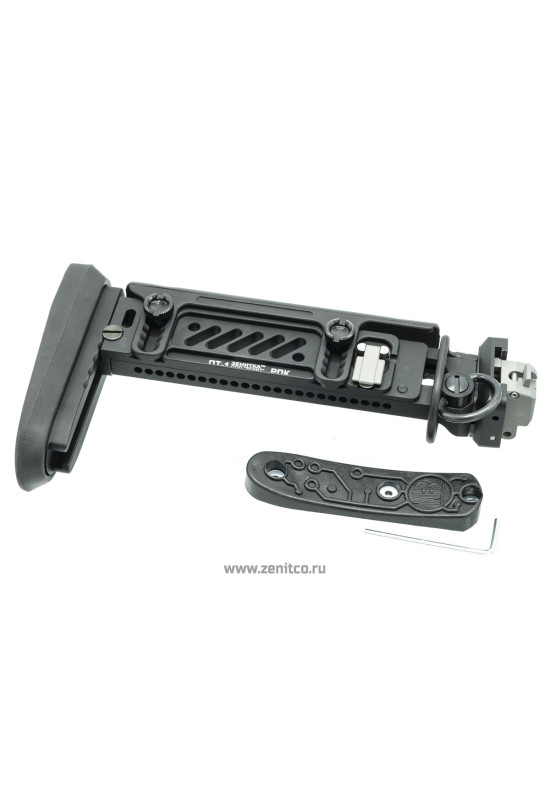

PT-1 RPK Milled Telescopic Folding Stock is designed for rifles based on RPK (Vepr).

If your rifle has a plate that prevents folding the stock with unlocked safety lever, use PT-1 Vepr stock.

If you do not have this plate – use PT-1 RPK stock.

PT-1 RPK allows adjustments according to goals and anatomical features of the shooter.

Advantages during Operation:

• Does not require weapon modification during installation.
• Adjustable cheek and adjustable butt pad.
• Wide range of length adjustments.
• Original mechanism allows folding stock with fixation at any stock length, cheek height, and butt pad height.
• Allows operation with iron sight in lower cheek position.
• Two butt pad options: wide and narrow.
• Two slingmount options in the kit.

In the Kit:

Specifications:

Material: D16T alloy

Weight: 537 ± 5 g (in the kit assembly: wide rubber cover for back of the stock and two slingmounts)

Overall dimensions: (224/324х110/142х42)

Operating temperature range: from -50 °С to +50 °С

Warranty period of storage and operation: 60 months

Installation Instructions:

1. Take off the regular stock:
• Remove the rear grip so it doesn’t interfere while hitting out the hinge.
• Open the dust cover.
• Use a hammer and a drift pin to remove the hinge from the folding mechanism. Strike from the bottom to the top towards the dust cover following standard disassembly instructions.
2. Choose a slingmount to use and screw out the other one.
3. Select a butt pad cover to use. If needed, replace by unscrewing the existing one and attaching the preferred cover.
4. Install the PT-1 RPK on the standard mount and hammer in the hinge.

Stock Adjustments:

1. To adjust the length, raise the lever, press the button under it, and pull the stock to the desired length. Close the lever to lock.
2. To adjust the height of the cheek:
• Loosen screws, set the cheek at the desired height, and tighten screws to fix.
3. To adjust the height of the butt pad:
• Loosen the screw, set the butt pad at the desired height, and tighten the screw to fix.
4. To fold, press the regular folding button; to unfold, press the unfolding button.

Note: Moving parts of the telescopic adjustment mechanism should be cleaned during weapon maintenance.

More detailed illustrated instructions are in the operation manual.

The manufacturer reserves the right to make changes to the product design or configuration without prior notice, provided these changes do not worsen the technical characteristics or consumer properties of the product and align with improvement goals.
