Leader kit | Zenitco
$795.00
- Ex Tax: $795.00
- Brand: Zenitco
- Product Code: ZNTC-LeaderKit
- Availability: 1

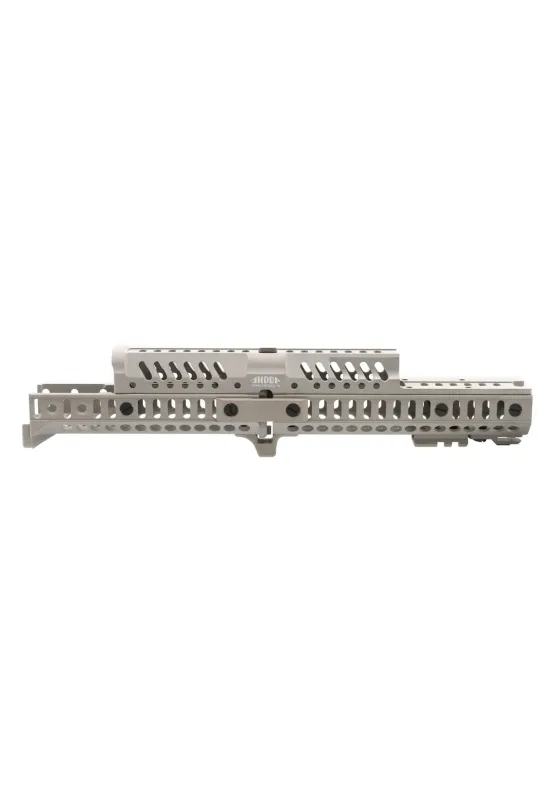

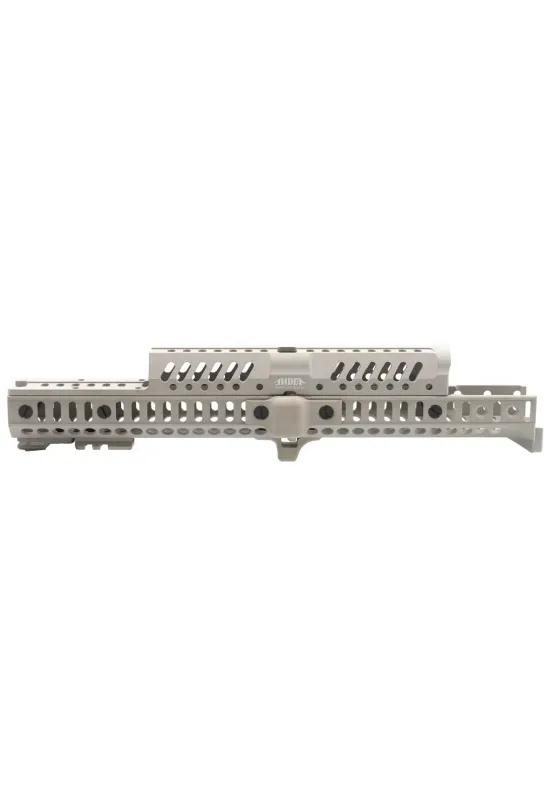

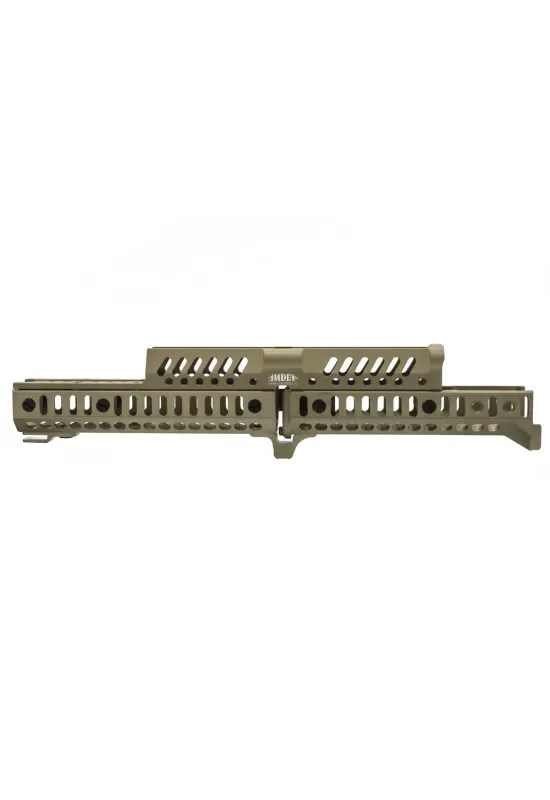

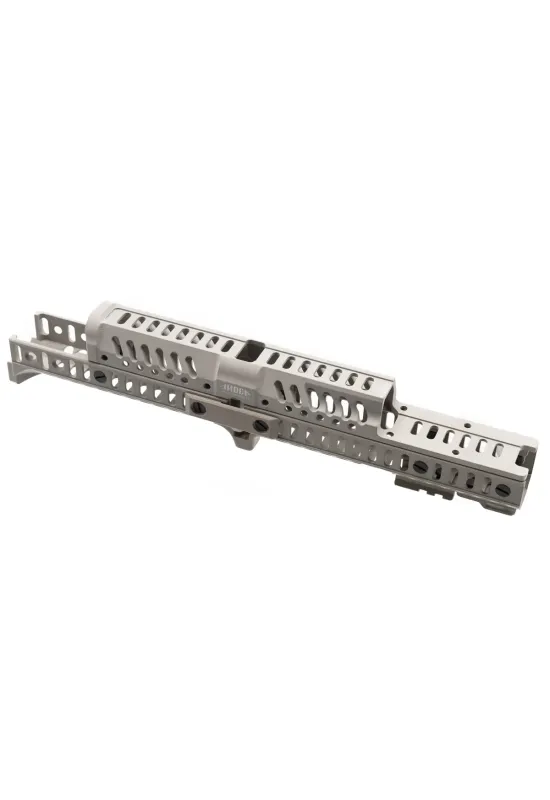

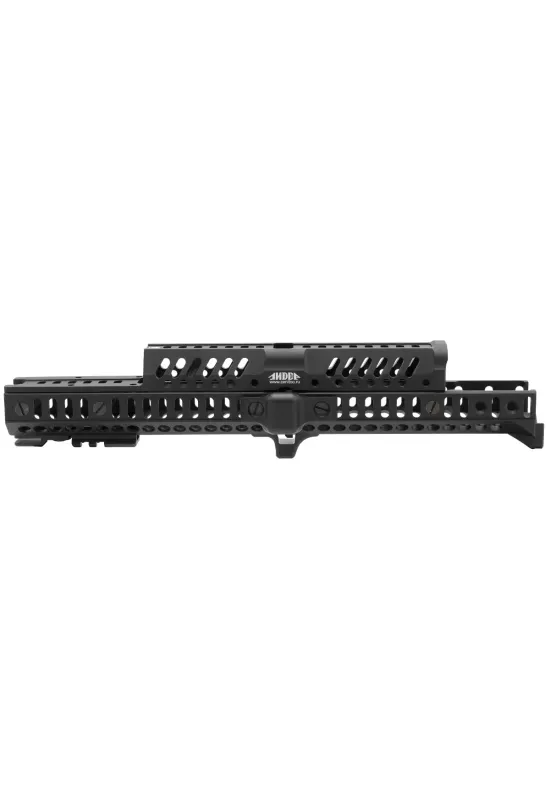

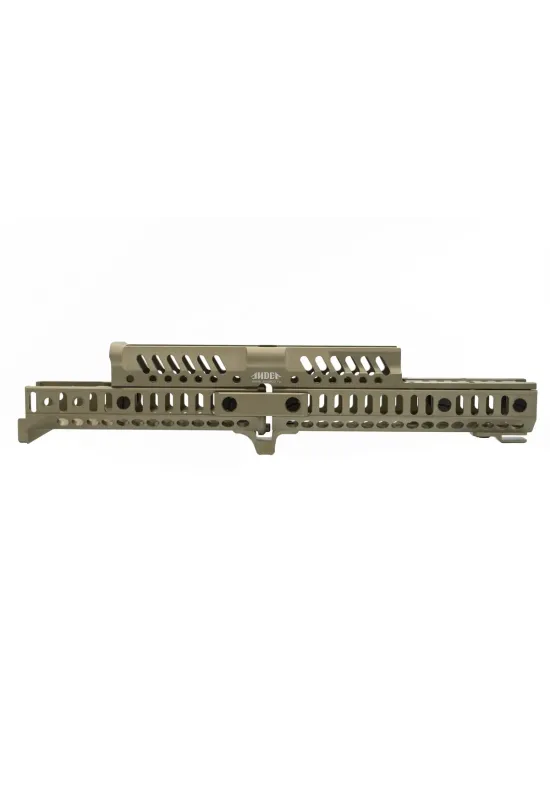

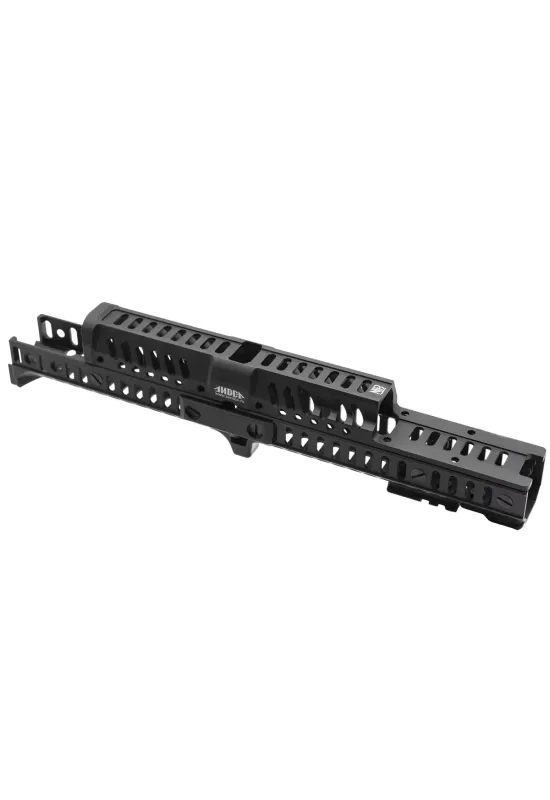

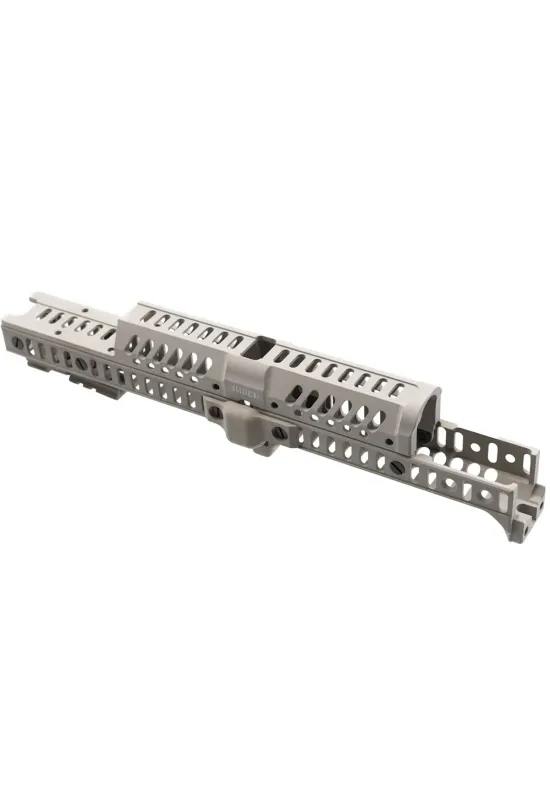

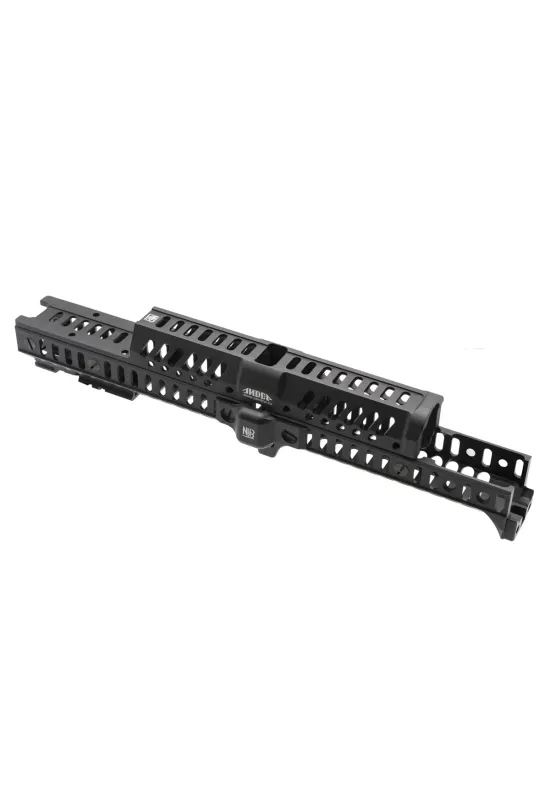

Leader kit is designed for rifles based on AK with a barrel length not less than 415 mm (not compatible with shorter barrels).
The Leader kit includes Basis rails on four sides, allowing the installation of additional equipment (hand stoppers, sling mounts, switches, wire holders, rail covers, grips, additional Picatinny rails) directly on the handguard. For Picatinny-compatible equipment, additional B-2, B-2L, B-2M, B-2U rails (sold separately) can be mounted at any position on the Basis rail.
The front section of the "Leader" kit is lowered to accommodate the "Perst-4" combined device, either as a standalone or integrated "Perst" block. When not using "Perst," an ergonomic insert can be added (sold separately).
Advantages:
- Lowered platform for "Perst-4" combined device
- Enhanced strength
- Ergonomic design
- Improved barrel cooling
- Multiple mounting options for additional equipment
Characteristics:
Material: D16T aluminum alloy
Weight: 385 g
Product length: 338 mm
Operating temperature range: -50 to +50 °C

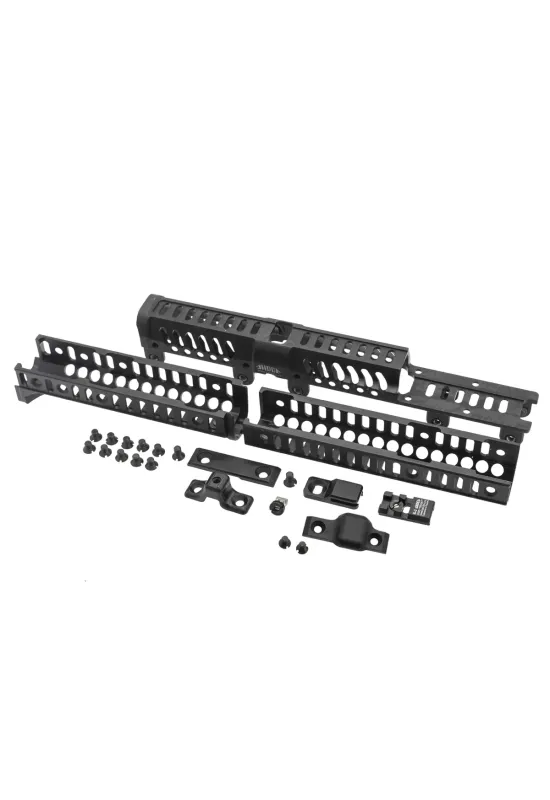

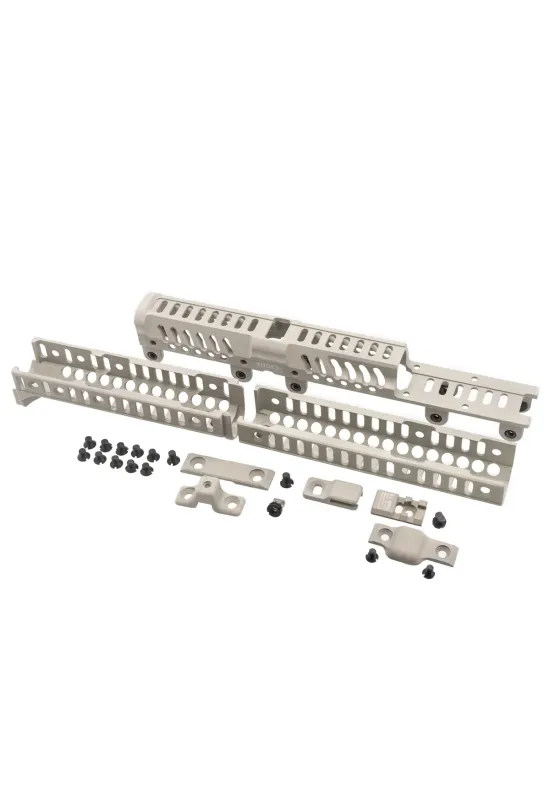

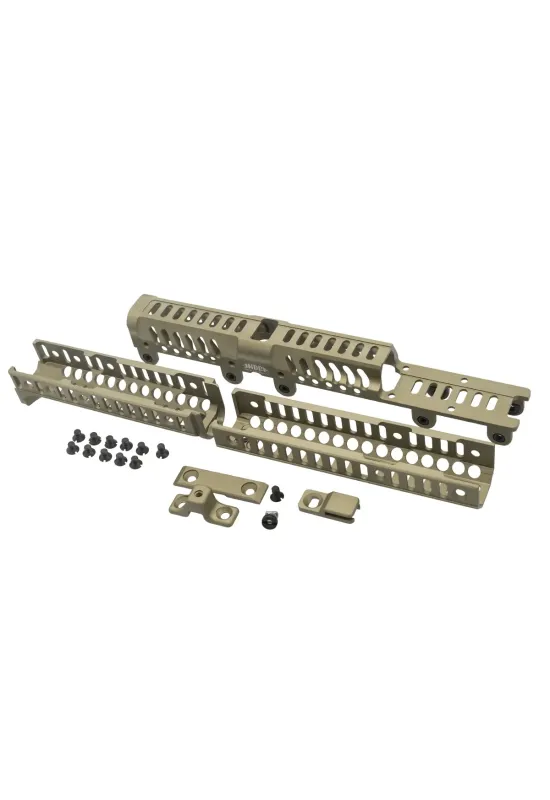

In the kit:
| B-31 Leader rail | 1 pc. |
| B-10L rail | 1 pc. |
| B-2 Leader | 1 pc. |
| DL Leader rail | 1 pc. |
| Leader side bar | 1 pc. |
| Leader hook | 1 pc. |
| Leader hand stopper | 1 pc. |
| Handguard retainer cover | 1 pc. |
| Screws: M5x7 M5x9 Oval mount |
10 pcs. 2 pcs. 2 pcs. |
| Manual | 1 pc. |
Installation Instructions for "Leader" Kit:
- Perform an incomplete disassembly of the rifle: remove the standard handguard and gas tube, and take off the gas tube cover.
- Install the B-10L rail in place of the regular handguard:
- Attach the regular handguard retainer to B-10L. Ensure the front pin on B-10L fits into the opening for the cleaning rod on the handguard retainer. (If your retainer lacks this opening, as with the TG2 rifle, file off the pin. Do not modify any other part if the retainer has this opening).
- Fit the other end of the handguard into the receiver.
- Using a wooden or metal spacer, hammer B-10L into place. Only hit the spacer. Tightness affects the stability of mounted sights and shot accuracy.
- Close the lever on the handguard retainer.
- Install the gas tube and pull down the gas tube lever.
- Attach the B-31 Leader rail.
- Attach the DL Leader rail.
- Connect B-10L and DL Leader rails with the Leader side bar using longer M5x9 screws on the side. For all other connections, use shorter M5x7 screws.
- Attach the Leader hand stopper at the bottom using M5x7 screws.
- Install the Leader hook as shown in the manual. Use a hammer and spacer if necessary.
