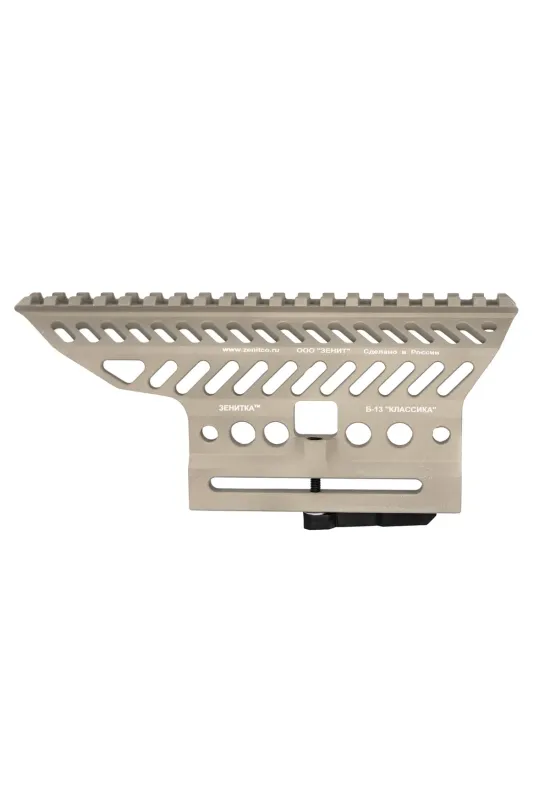

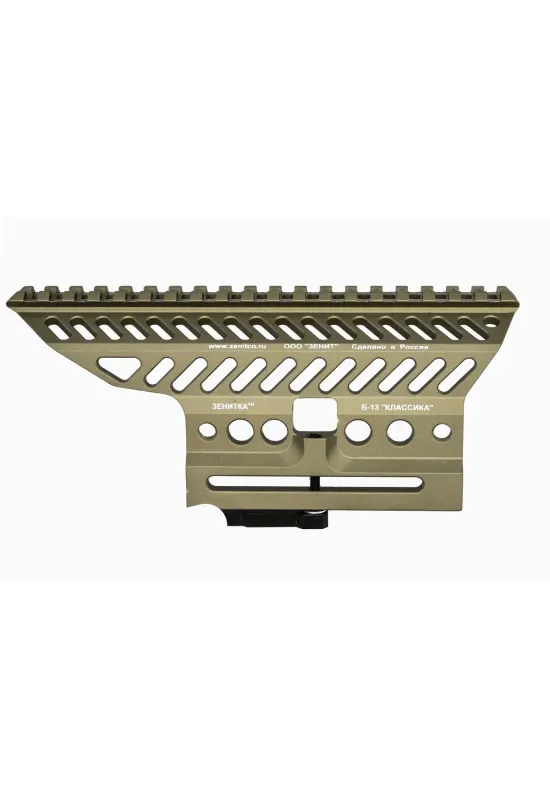

The B-13 rail, designed to be installed above the receiver, attaches to the regular dovetail joint located on the receiver of AK-103, -104, -105, -74, -74M, -74S, -AKMS, -AKM, Saiga-MK, -Saiga-MK-03, -Saiga-410, TG-2, Saiga-308 v.61.

It allows for the installation of sighting devices and creates a Picatinny rail over the receiver.

Operational Benefits:

• Lightweight and durable
• Quick installation and removal
• Double fixation on the dovetail base
• Does not obstruct standard sighting devices when mounted

Specifications

Weight: 175 ± 5 g

Overall Dimensions: (88 x 45 x 200) ± 5 mm

Picatinny Rail Length: 200 ± 5 mm

Operating Temperature Range: -50 °C to +50 °C

In the Kit:

Installation Instructions:

1. Set the bracket lock lever to the “open” position.
2. Loosen the locking screws on the lever using an Allen key.
3. Place the "B-13" on the side rail of the receiver, sliding it from the stock towards the barrel.
4. Turn the lock lever to the "closed" position and verify that the bracket is securely fixed.
5. If the bracket is not securely fixed, adjust as follows:
• Move the lever to the "open" position.
• Loosen the locking screw on the lever with an Allen key.
• Use the inner screw on the lever to adjust until the "B-13" begins to fix onto the receiver's side rail. Tighten the lock screw.
• Turn the locking lever to the closed position.

The manufacturer reserves the right to make changes to the product design or configuration without prior notice, provided that these changes do not affect the technical characteristics or consumer properties and align with the goal of enhancing design or production technology.
