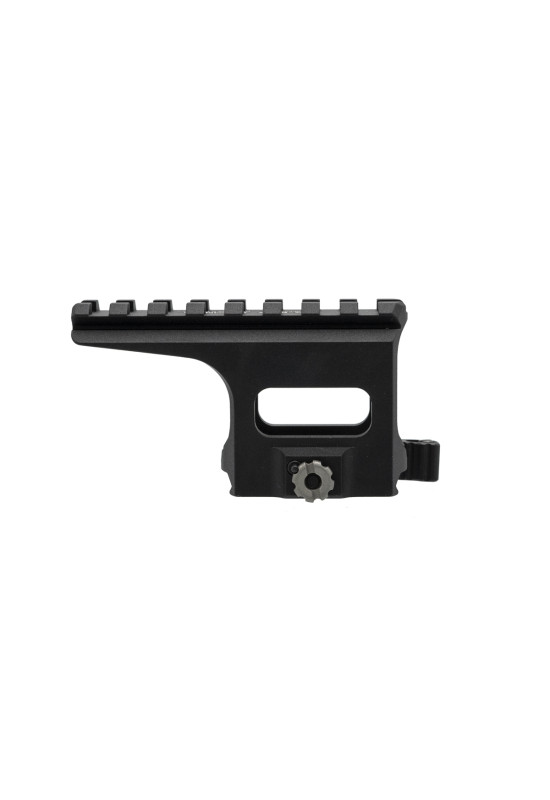

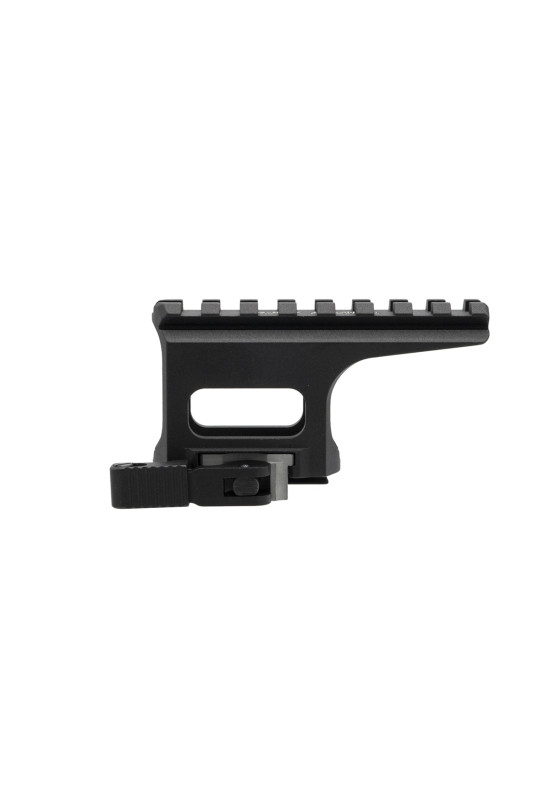

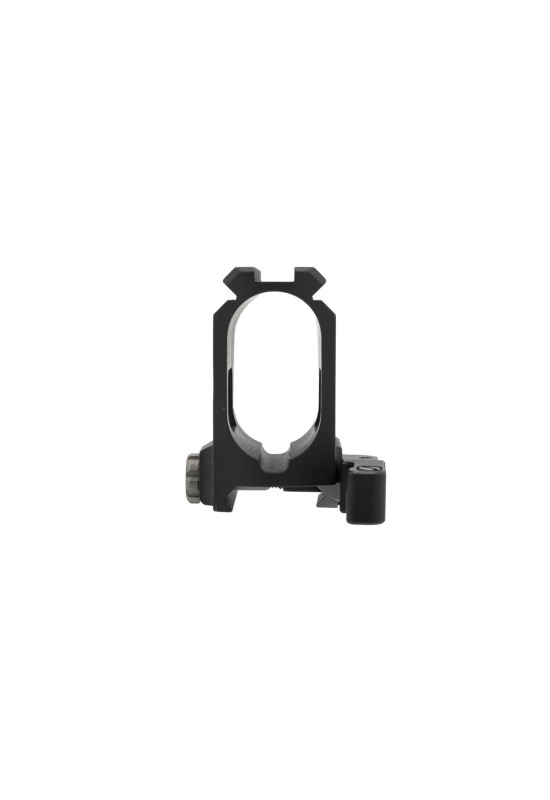

The B-5VU V2.0 bracket is a Picatinny-to-Picatinny adapter designed to create an optical channel between two rails. It allows the combined use of the Gran thermal imager and a collimator sight with an optical axis height of 30 mm.

Thanks to its design, the B-5VU V2.0 enables mounting additional optics without blocking the line of sight, maintaining the functionality of backup aiming devices. Compatible with a range of collimator sights using a PV-30 riser.

Compatible Collimator Sights:

• Vzor-1 (with PV-30 riser, included)
• Vzor-3 (with PV-30 riser, sold separately)
• Vzor-3T (with PV-30 riser, sold separately)
• Vzor-3TK (with PV-30 riser, sold separately)
• Vzor-5 (standard configuration)
• Vzor-5T (standard configuration)
• Vzor-5TK (standard configuration)

Specifications:

Material: D16T aluminum alloy

Weight: 84 ± 5 g

Overall Dimensions: (95 × 42 × 52) ± 2 mm

Operating Temperature Range: -50 °С to +50 °С

In the Kit:

Installation Instructions:

1. Loosen the mounting screws on the B-5VU V2.0 bracket to allow placement on the rail.
2. Align the bracket with the Picatinny rail in the desired position.
3. Securely tighten the screws using a hex key to ensure firm attachment.

Note: All screws have a standard right-hand thread. Ensure the hex key is fully inserted to avoid stripping.

For additional guidance, please refer to the detailed operation manual.

The manufacturer reserves the right to make changes to the product design or configuration without prior notice, provided that these changes do not negatively affect the technical characteristics or consumer properties of the product and are intended to enhance design or production technology.
