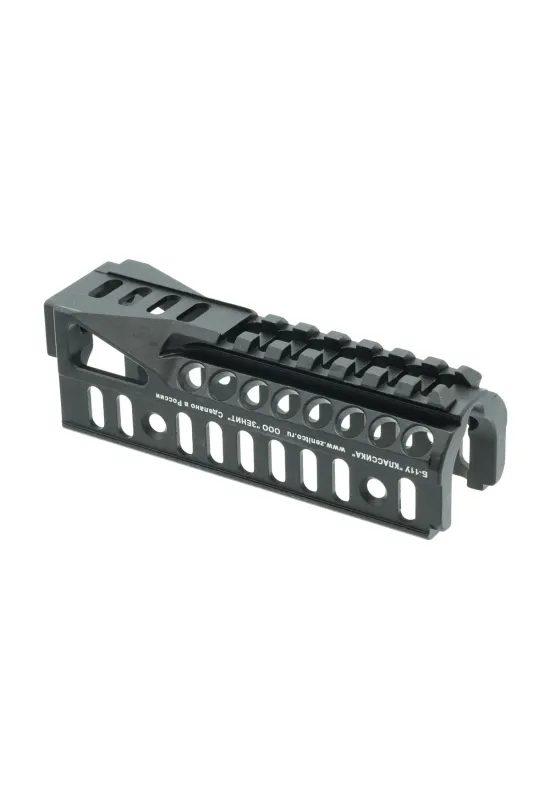

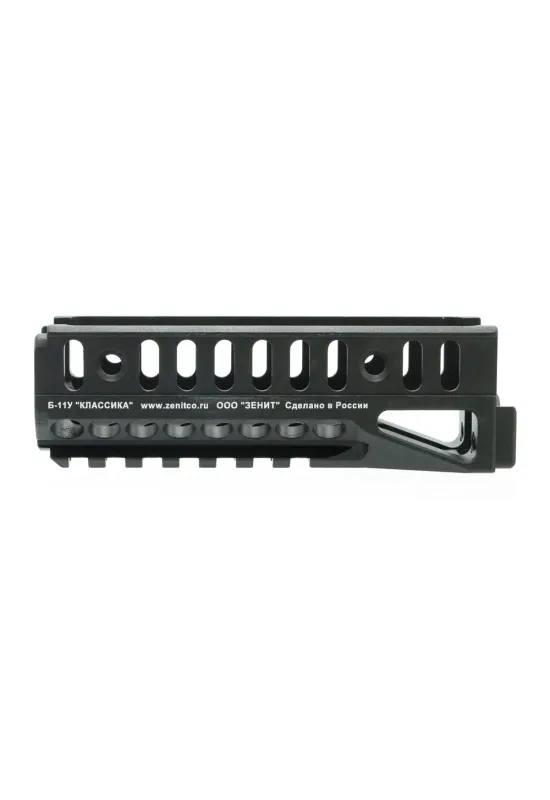

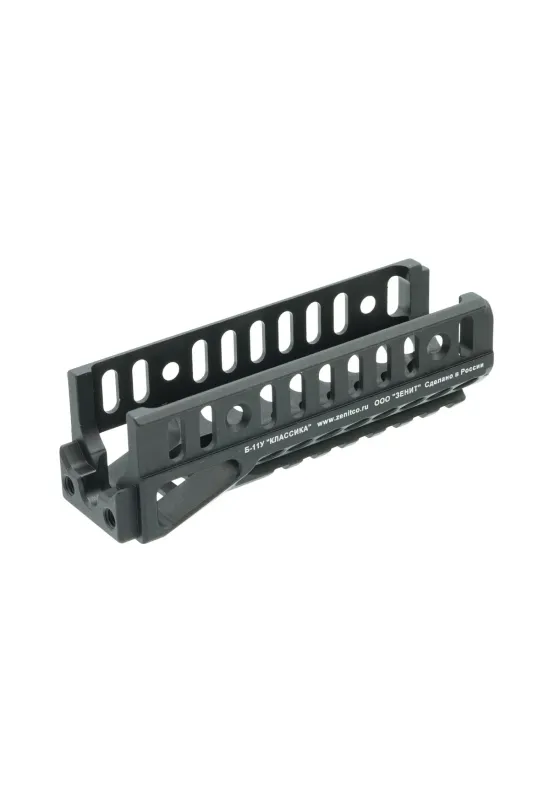

B-11U handguard is designed for installation in place of the standard handguard on the AKS-74U.

Main Features:

The B-11U handguard forms:

• Picatinny Rail on the Bottom: Allows the attachment of various accessories, including:
• RK-0, RK-4, RK-5, RK-6 grips
• Tactical flashlights
• Laser pointers
• Bipods
• Basis Rail on the Sides and Mini Basis Rail on the Bottom: Compatible with accessories such as:
• B-2, B-2L, B-2M, B-2U Picatinny rails
• A-1L, A-2L slingmounts
• RL-1 hand stoppers
• NPN-2 Basis rail covers
• FP-3 wire holders
• B-19 or B-19N upper handguards

Benefits during Operation:

• Enhances cooling of the barrel from the receiver to the gas tube
• Supports the mounting of additional equipment

Specifications:

Material: Aluminum alloy D16T

Weight: 95 ± 10 g

Overall dimensions: (127 x 40 x 38) ± 5 mm

Operating temperature range: from -50°С to +50°С

In the Kit:

Installation Instructions:

1. Perform an incomplete disassembly of the AKS-74U and remove the regular handguard.
2. Install the B-11U in place of the regular handguard.
3. Ensure a tight installation by following these steps:
• Place the handguard retainer on the B-11U.
• Align the free end of the B-11U with the receiver.
• Use a wooden or metal spacer on the handguard retainer and tap it with a hammer.
• Reassemble the rifle.
4. Important: Do not file the B-11U handguard during installation, as this may cause looseness where it meets the receiver.

Note: The stability of the handguard mounting affects the accuracy of sights mounted on it.

The manufacturer reserves the right to make changes to the product design or configuration without prior notice, provided these changes do not worsen the technical characteristics or consumer properties of the product and align with the aim of improving its design or production technology.
